LDAP Basics and Configuration

The LDAP functionality is integrated to 4App Core Engine from version 4.4.

For lower Core Engine versions, the following separate 4Apps are required:

• Core Engine 4.0 to 4.3: Authentication Provider LDAP (opens new window)
• Core Engine 3.10 or below: Authentication Base (opens new window) and Authentication Provider LDAP (opens new window)

Before upgrading to Core Engine version 4.4, note the following:

• Remove the installed 4Apps Authentication Base and Authentication Provider LDAP
• Existing configurations will work as before and do not need to be changed.

If you worked with 4App Authentication Provider LDAP 4.0.1 or lower, check existing LDAP providers in the admin snap-in. If Login type is set to Active directory, field User filter should only contain additional and restriction(s) if required. Empty this field to only use filter from the backend (user search filter details).

LDAP Basics

The LDAP integration in the 4ALLPORTAL allows to access directory services using the LDAP protocol. This makes it possible to log in to the 4ALLPORTAL with a user identity that is stored centrally in the directory service (e.g. in Microsoft Active Directory). This is not only faster, but also more secure.

At the first login to the 4ALLPORTAL, the data stored for a user in the directory service is used to automatically create a user in the 4ALLPORTAL.

Use admin snap-in Authentication/LDAP provider for configuration.

Supported LDAP Servers

The LDAP functionality has been tested with the following directories:

• Microsoft Active Directory
• Lotus Domino
• Novell eDirectory
• OpenLDAP

Other directory services based on the LDAP protocol are possible.

App Extensions

We offer two optional extensions for the Authentication Provider LDAP:

1. Authentication Service SSO (opens new window) enables Single Sign-on (SSO) for Windows Active Directory (AD) users. Users logged in to the Windows domain will be logged in to the 4ALLPORTAL automatically.

2. LDAP Sync User (opens new window) transfers all or selected users from your LDAP directory service to the 4ALLPORTAL and create them as new users.

LDAP Configuration

Prerequisite: Make sure that you can access the directory service server (LDAP URL and port) from your 4ALLPORTAL server.

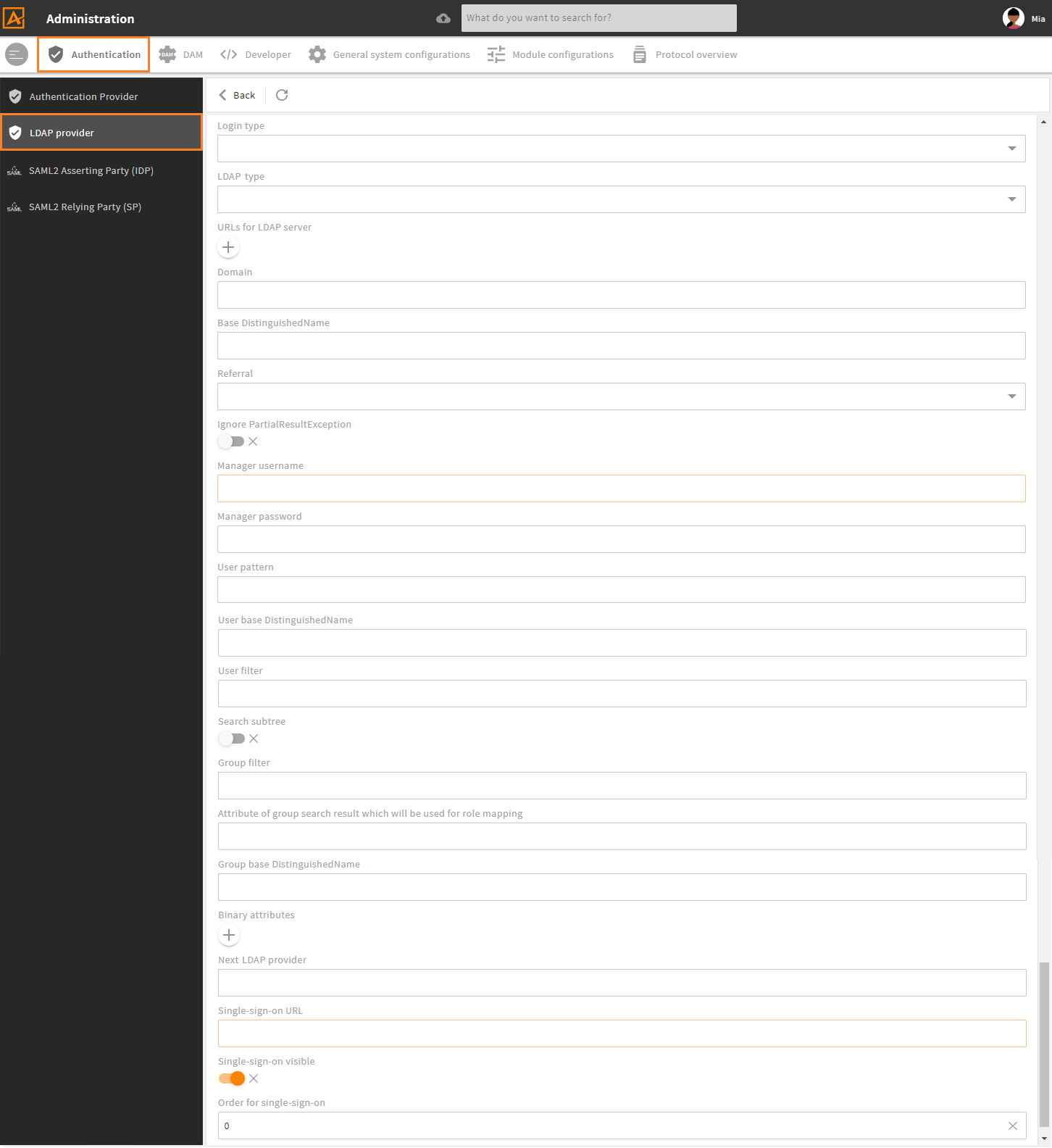

To configure an LDAP authentication provider, use admin snap-in Authentication/LDAP provider in the administration area. All changes made here will be stored in an XML file in folder custom/global/authentication_provider/ldap. The name of the XML file is the name you give your connector when you configure it.

Basic Configuration Fields

The first part of fields (from Provider name to Language mapping as well as URL after logout) is our general authentication configuration.

Basic Authentication Configuration

For general authentication information and further configuration options (default provider or login screen), refer Core Engine's basic authentication provider documentation.

LDAP Configuration Fields

The second part of fields is LDAP specific:

Field	Attribute	Type	Description
Login type	login_pattern_type	enum LoginPatternType values: - default - user_pattern - manager - active_directory	Defines which parameters will be used: Pattern type details
LDAP Type	resolve_ldap_type	enum ResolveLdapType values: - active_directory - global_catalog	Only for login_pattern_type active_directory. When set, the first URL in urls is used to get the next LDAP URL with type active_directory or global_catalog from the Windows server.
URLs for LDAP server	urls	String[]	Assign URL(s) and port (optional) to LDAP server. Example: ldap://localhost:389
Domain	domain	String	Only for login_pattern_type active_directory. Builds bindUser with user from request + “@” + domain for login with Down-Level Logon Name.
Base DistinguishedName	base	String	Entry point for accessing the LDAP directory.
Referral	referral	String	Set to follow if you want LDAP referrals to be followed. Allowed values: null, ignore (default, if value is null) and follow
Ignore PartialResultException	ignore_partial_result_exception	boolean default: false	Set to true if PartialResultException is thrown (which happens if Active Directory is used and LDAP tries to follow referrals).
Manager username	manager_user	String	Assign the manager username used to determine the bind user name for the LDAP user. Necessary if not possible to login with content from request, e.g. SSO, or if the user from request has not sufficient permissions
Manager password	manager_password	String	Assign the password for the manager_user
User pattern	user_pattern	String	Used when login_pattern_type = user_pattern. Replace login name from request in user_pattern from configuration to generate bind user. Example: uid={0},dc=example,dc=com
User base DistinguishedName	user_search_base	String	Searches users only below this path in LDAP directory. Example: dc=example,dc=com. Path must be set relative to the Base DistinguishedName path.
User filter	user_search_filter	String	Search pattern for user search. For type active_directory, take a look here
Search subtree	search_subtree	boolean default: false	Searches for users only in user_search_base. If true searches also in subtrees
Group filter	group_search_filter	String	Filter to find user groups for role mapping. Example: (&(objectclass=group)(member={0}))
Attribute of group search result	group_search_result	String	Content of attribute from group search will be used for role mapping to CoreEngine roles. Generated attribute dn is always possible. - cn: common name (short group name) - dn: distinguished name (full group name) - other attributes from group result also possible
Group base DistinguishedName	group_search_base	String	Searches only for groups below this directory entry. Example: dc=example,dc=com
Binary attributes	binary_attributes	String[]	These LDAP attributes have to be transferred binary. Needed for example when an OpenLDAP is used as a proxy for an Active Directory.
Next LDAP provider	next_provider	String	Order of LDAP authentication providers to try if a login is not possible with the current provider
Single-sign-on URL	single_sign_on_url	String	URL to Authentication service SSO application (opens new window) which allows single sign-on for Active Directory users. Has to start with http(s)://
Single-sign-on visible	single_sign_on_visible	boolean default: true	Set to false if SSO should not be shown in login GUI. Like visible, but for SSO provider only.
Order for single-sign-on	single_sign_on_order	int	Position on authentication provider list in login GUI. Like order, but for SSO provider only.

• After your configuration is complete, reload your system.
• Your 4ALLPORTAL login page now contains one icon for LDAP login and (if single_sign_on_url is set) a second icon for SSO login.

Pattern Type Details

Descriptions for the pattern types (Login types) to choose from:

default

• search user filter: user_search_filter from LDAP configuration
• search for username: from request
• bind user: from request
• bind password: from request

user_pattern

• search user filter: user_search_filter from LDAP configuration
• search for username: from request
• bind user: user from request replaced in user_pattern from LDAP configuration
• bind password: from request

manager

• search user filter: user_search_filter from LDAP configuration
• search for username: from request
• bind user: manager_user from LDAP configuration
• bind password: manager_password from LDAP configuration

active_directory

• username with @ (userPrincipalName)
  • search user filter: (&((userPrincipalName={0})(samAccountType=805306368){CUSTOM_FILTER}))
  • searchUser: username from request
  • bind user: from request
  • bind password: from request
• username with (Down-Level Logon Name)
  • search user filter: (&((sAMAccountName={0})(samAccountType=805306368){CUSTOM_FILTER}))
  • searchUser: part before \ from username in request
  • bind user: from request
  • bind password: from request
• all other logins (sAMAccountName)
  • search user filter: (&((sAMAccountName={0})(samAccountType=805306368){CUSTOM_FILTER}))
  • searchUser: username from request
  • bind user: username from request + “@” + domain from LDAP configuration
  • bind password: from request

Find more details, and an example search filter for Active Directory here.

Login Screen

You have three options to display an authentication provider on your login screen:

1. Let users choose from all configured and visible authentication providers (Microsoft Active Directory, Domino, eDirectory ...).
2. Set one username/password provider that will additionally be called when entering 4ALLPORTAL credentials.
3. Predefine one chosen provider that displays/logs in per default.

Login screen with two LDAP providers to choose from

Customize Login Screen (Optional)

Set Icon for Login GUI

To configure the displayed icon, just replace or copy your custom SVG file GLOBAL-AUTHENTICATION_PROVIDER-{$provider_name}.4apicon to folder custom/global/styles/default/.

Set Locale for Login GUI

• locale keys for LDAP
  • L-GLOBAL-CONNECTOR-{$provider_name}
  • L-GLOBAL-CONNECTOR-{$provider_name}-INFO
• locale keys for SSO
  • L-GLOBAL-CONNECTOR-{$provider_name}_SSO
  • L-GLOBAL-CONNECTOR-{$provider_name}_SSO-INFO

LDAPs Support

There is no special support for LDAPs, but it can be used with certificates in default java keystore.

Reference: Example Configuration File

<authentication_provider>
  <visible>false</visible>
  <order>10</order>
  <ignore_frontend_language>false</ignore_frontend_language>
  <default_role_id>...</default_role_id>
  <default_language></default_language>
  <sync_to_contact>false</sync_to_contact>
  <user_mapping>
    <atr ce="firstname" extern="givenname"/>
    <atr ce="ext_id" extern="objectSid" overwrite="false"/>
    <atr ce="email" extern="mail"/>
    <atr ce="username" extern="userPrincipalName"/>
    <atr ce="lastname" extern="sn"/>
  </user_mapping>
  <group_role_mappings>
    <group_role_mapping>
      <prio>1</prio>
      <group>CN=Admin,DC=example,DC=com</group>
      <role>Admin</role>
    </group_role_mapping>
    <group_role_mapping>
      <prio>100</prio>
      <group>CN=Users,DC=example,DC=com</group>
      <role>User</role>
    </group_role_mapping>
  </group_role_mappings>
  <language_mapping>
    <language>
      <extern>Deutsch</extern>
      <ce>de_DE</ce>
    </language>
    <language>
      <extern>English</extern>
      <ce>en_US</ce>
    </language>
  </language_mapping>
  <login_pattern_type>active_directory</login_pattern_type>
  <!-- get LDAP URL by first URL only for AD or GC -->
  <!-- values: null, active_directory, global_catalog -->
  <resolve_ldap_type>global_catalog</resolve_ldap_type>
  <!-- values: LDAP URLs or with AD url to resolve LDAP URL -->
  <urls>
    <url>example.com</url>
  </urls>
  <referral>ignore</referral>
  <ignore_partial_result_exception>false</ignore_partial_result_exception>
  <!-- only for AD. necessary for login with sAMAccountName -->
  <domain>example.com</domain>
  <manager_user>...</manager_user>
  <manager_password>...</manager_password>
  <user_search_filter>(&amp;(objectclass=user)(memberOf=CN=development,OU=development,OU=example_company,DC=example,DC=com))</user_search_filter>
  <!-- default: false - values: true/false -->
  <search_subtree>true</search_subtree>
  <group_search_filter>(&amp;(objectclass=group)(member={0}))</group_search_filter>
  <group_search_result>dn</group_search_result>
  <!-- URL to external single sign-on service -->
  <single_sign_on_url>https://sso.example.com/example-sso</single_sign_on_url>
  <single_sign_on_visible>false</single_sign_on_visible>
  <single_sign_on_order>20</single_sign_on_order>
</authentication_provider>
