Configure a custom folder workflow

To configure a workflow for folder creation, you need a workflow XML file in the folder of the module you want to start the workflow from: modules/<module_name>/workflow_events/<workflow_name>.xml. You need to add a new <actions>-section and define which metadata fields should trigger the app to produce folders and subfolders in the file system (Folders module).

Note: See how to create a complete workflow XML in our event-based workflow documentation (opens new window).

Example configuration

In the following example, we have a module called projects. Our projects are movies and series. Each time we create or edit a project, its name and season number (if it's a series) should be entered into a metadata field. We automatically want folders and subfolders to be created in our file system for each project.
So this it how the folder configuration of the workflow XML would look like:

<!--some other stuff-->

  <actions>
    <action class="com.cm4ap.ce.folderworkflow.action.FolderWorkflowAction">
      <parameters>

        <!--optional-->
        <entry key="pre_tagging" class="java.util.HashMap">
          <entry key="relation" class="java.util.HashMap">
            <entry key="value">{id}</entry>
            <entry key="class">CEIdList</entry>
          </entry>
          <entry key="movie_title" class="java.util.HashMap">
            <entry key="value">{movie_title}</entry>
            <entry key="class">CEVarchar</entry>
          </entry>
        </entry>
      </parameters>
    </action>
  </actions>

<!--some other stuff-->

Parameter description

• Optional entry key pre_tagging of type java.util.HashMap: contains java.util.HashMap which contains value and class.
  • <entry key="relation" class="java.util.HashMap">: the key is the field name for the pre-tag.
  • <entry key="value">{id}</entry> <entry key="class">CEIdList</entry>: The value contains {id} which will generate a value from the field in our project module. Class contains the type of the field. Add as many pre-tags as necessary.

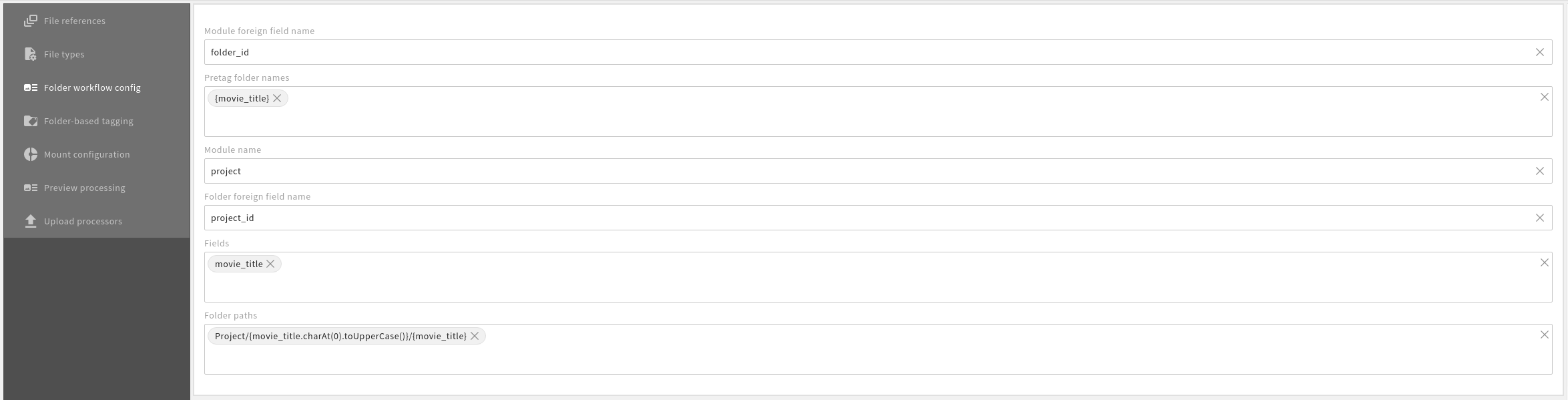

SnapIn field description

• Entry Module foreign field name: contains the name of the relational field created in our project module.
• Optional entry Pretag folder names: requires and relates to the entry pre_tagging. This contains the list of all folder names.
• Entry Module name is the name of the associated module. e.g. project
• Entry Folder foreign field name: contains the name of the relational field created in folder module. This entry is required to keep the link between field and folder. Your folder will then rename automatically when you rename the project.
• Entry Fields contains all field names from our project module used in this configuration.
• Entry Folder paths of type array: contains the structure for folder paths.
  • Project/{movie_title.charAt(0).toUpperCase()}/{movie_title}: movie_title is a field from our project module which will be used for folder naming.
    Example: If the field movie_title contains the value Changeling, the output folder structure is Project/C/Changeling.

Note: Entry keys and types should not be changed. The app supports all ce_types in folder names.
