# Configuring Authentication Provider LDAP

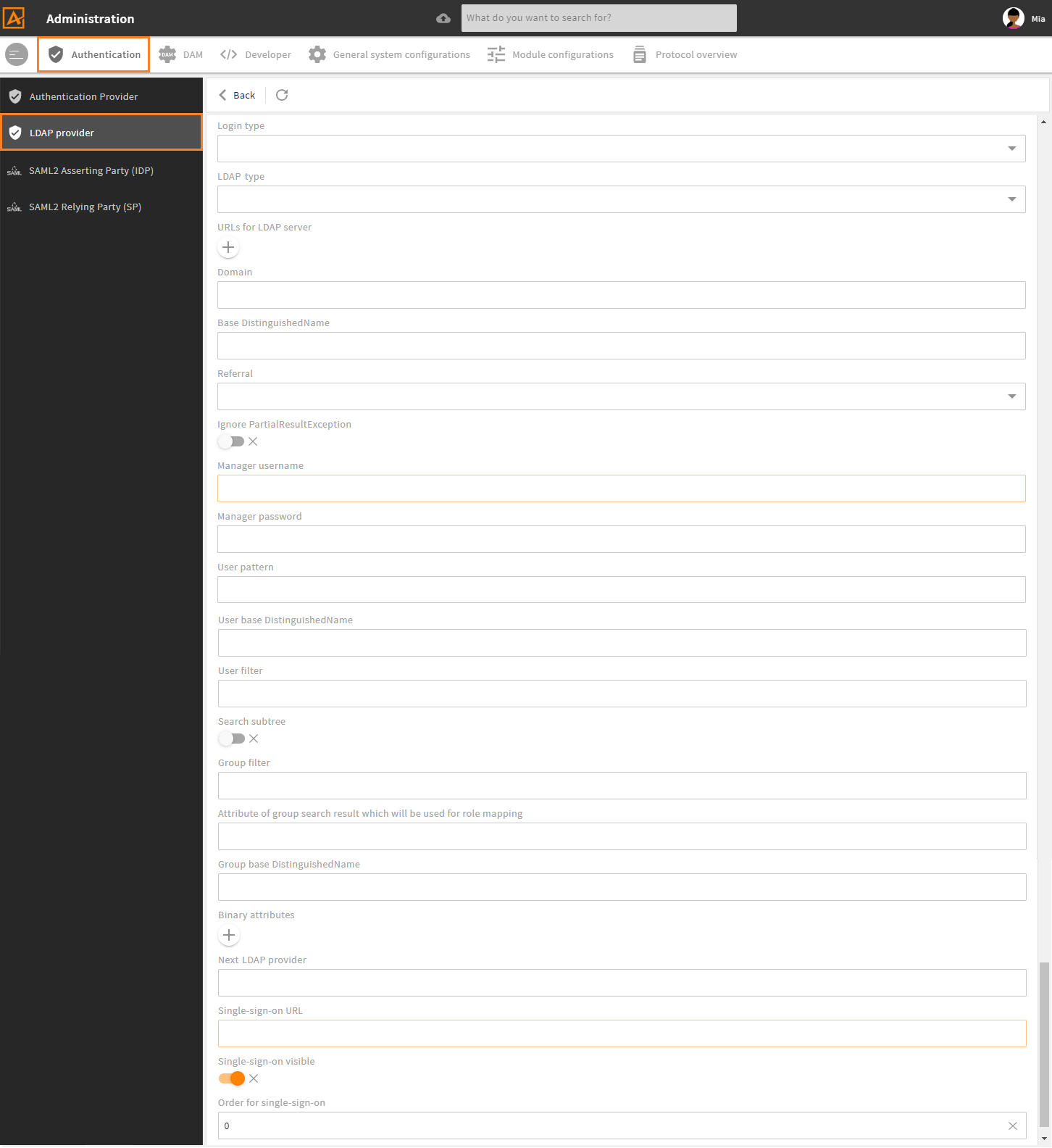

To configure the Authentication Provider LDAP use admin snap-in Authentication/LDAP provider in the administration area.

All changes made here will be stored in an XML file in your folder custom/global/authentication_provider/ldap. The name of the XML file is the one you give your connector when you configure it.

# Snap-in Fields

The first part of fields (from Provider name to Language mapping) is our general authentication configuration.

For details and descriptions of these fields, as well as further configuration options (default provider/login screen) please take a look at Core Engine's basic authentication provider documentation (opens new window).

The second part of fields is LDAP specific:

Field Attribute Type Description
Login type login_pattern_type enum
LoginPatternType
values:
- default
- user_pattern
- manager
- active_directory		 Defines which parameters will be used: Pattern type details
LDAP Type resolve_ldap_type enum
ResolveLdapType
values:
- active_directory
- global_catalog		 Only for login_pattern_type active_directory. When set, the first URL in urls is used to get the next LDAP URL with type active_directory or global_catalog from the Windows server.
URLs for LDAP server urls String[] Assign URL(s) and port (optional) to LDAP server.
Example: ldap://localhost:389
Domain domain String Only for login_pattern_type active_directory. Builds bindUser with user from request + “@” + domain for login with Down-Level Logon Name.
Base DistinguishedName base String Entry point for accessing the LDAP directory.
Referral referral String Set to follow if you want LDAP referrals to be followed.
Allowed values: null, ignore (default, if value is null) and follow
Ignore PartialResultException ignore_partial_result_exception boolean
default: false		 Set to true if PartialResultException is thrown (which happens if Active Directory is used and LDAP tries to follow referrals).
Manager username manager_user String Assign the manager username used to determine the bind user name for the LDAP user. Necessary if not possible to login with content from request, e.g. SSO, or if the user from request has not sufficient permissions
Manager password manager_password String Assign the password for the manager_user
User pattern user_pattern String Used when login_pattern_type = user_pattern. Replace login name from request in user_pattern from configuration to generate bind user.
Example: uid={0},dc=example,dc=com
User base DistinguishedName user_search_base String Searches users only below this path in LDAP directory.
Example: dc=example,dc=com. Path must be set relative to the Base DistinguishedName path.
User filter user_search_filter String Search pattern for user search. For type active_directory, take a look here
Search subtree search_subtree boolean
default: false		 Searches for users only in user_search_base. If true searches also in subtrees
Group filter group_search_filter String Filter to find user groups for role mapping.
Example: (&(objectclass=group)(member={0}))
Attribute of group search result group_search_result String Content of attribute from group search will be used for role mapping to CoreEngine roles. Generated attribute dn is always possible.
- cn: common name (short group name)
- dn: distinguished name (full group name)
- other attributes from group result also possible
Group base DistinguishedName group_search_base String Searches only for groups below this directory entry.
Example: dc=example,dc=com
Binary attributes binary_attributes String[] These LDAP attributes have to be transferred binary. Needed for example when an OpenLDAP is used as a proxy for an Active Directory.
Next LDAP provider next_provider String Order of LDAP authentication providers to try if a login is not possible with the current provider
Single-sign-on URL single_sign_on_url String URL to Authentication service SSO application (opens new window) which allows single sign-on for Active Directory users. Has to start with http(s)://
Single-sign-on visible single_sign_on_visible boolean
default: true		 Set to false if SSO should not be shown in login GUI. Like visible, but for SSO provider only.
Order for single-sign-on single_sign_on_order int Position on authentication provider list in login GUI. Like order, but for SSO provider only.
  • After your configuration is complete, reload your system.
  • Your 4ALLPORTAL login page now contains one icon for LDAP login and (if single_sign_on_url is set) a second icon for SSO login.

# Pattern Type Details

Descriptions for the pattern types (Login types) to choose from:

# default

  • search user filter: user_search_filter from LDAP configuration
  • search for username: from request
  • bind user: from request
  • bind password: from request

# user_pattern

  • search user filter: user_search_filter from LDAP configuration
  • search for username: from request
  • bind user: user from request replaced in user_pattern from LDAP configuration
  • bind password: from request

# manager

  • search user filter: user_search_filter from LDAP configuration
  • search for username: from request
  • bind user: manager_user from LDAP configuration
  • bind password: manager_password from LDAP configuration

# active_directory

  • username with @ (userPrincipalName)
    • search user filter: (&((userPrincipalName={0})(samAccountType=805306368){CUSTOM_FILTER}))
    • searchUser: username from request
    • bind user: from request
    • bind password: from request
  • username with (Down-Level Logon Name)
    • search user filter: (&((sAMAccountName={0})(samAccountType=805306368){CUSTOM_FILTER}))
    • searchUser: part before \ from username in request
    • bind user: from request
    • bind password: from request
  • all other logins (sAMAccountName)
    • search user filter: (&((sAMAccountName={0})(samAccountType=805306368){CUSTOM_FILTER}))
    • searchUser: username from request
    • bind user: username from request + “@” + domain from LDAP configuration
    • bind password: from request

Find more details, and an example search filter for Active Directory here.

# Login Screen

You have three options to display an authentication provider on your login screen:

  1. Let users choose from all configured and visible authentication providers (Microsoft Active Directory, Domino, eDirectory ...).
  2. Set one username/password provider (opens new window) that will additionally be called when entering 4ALLPORTAL credentials.
  3. Predefine one chosen provider (opens new window) that displays/logs in per default.


Login screen with two LDAP providers to choose from

# Customize Login Screen (Optional)

# Set Icon for Login GUI

To configure the displayed icon, just replace or copy your custom SVG file GLOBAL-AUTHENTICATION_PROVIDER-{$provider_name}.4apicon to folder custom/global/styles/default/.

# Set Locale for Login GUI

  • locale keys for LDAP
    • L-GLOBAL-CONNECTOR-{$provider_name}
    • L-GLOBAL-CONNECTOR-{$provider_name}-INFO
  • locale keys for SSO
    • L-GLOBAL-CONNECTOR-{$provider_name}_SSO
    • L-GLOBAL-CONNECTOR-{$provider_name}_SSO-INFO

# LDAPs Support

There is no special support for LDAPs, but it can be used with certificates in default java keystore.

# Reference: Example Configuration File

<authentication_provider>
  <visible>false</visible>
  <order>10</order>
  <ignore_frontend_language>false</ignore_frontend_language>
  <default_role_id>...</default_role_id>
  <default_language></default_language>
  <sync_to_contact>false</sync_to_contact>
  <user_mapping>
    <atr ce="firstname" extern="givenname"/>
    <atr ce="ext_id" extern="objectSid" overwrite="false"/>
    <atr ce="email" extern="mail"/>
    <atr ce="username" extern="userPrincipalName"/>
    <atr ce="lastname" extern="sn"/>
  </user_mapping>
  <group_role_mappings>
    <group_role_mapping>
      <prio>1</prio>
      <group>CN=Admin,DC=example,DC=com</group>
      <role>Admin</role>
    </group_role_mapping>
    <group_role_mapping>
      <prio>100</prio>
      <group>CN=Users,DC=example,DC=com</group>
      <role>User</role>
    </group_role_mapping>
  </group_role_mappings>
  <language_mapping>
    <language>
      <extern>Deutsch</extern>
      <ce>de_DE</ce>
    </language>
    <language>
      <extern>English</extern>
      <ce>en_US</ce>
    </language>
  </language_mapping>
  <login_pattern_type>active_directory</login_pattern_type>
  <!-- get LDAP URL by first URL only for AD or GC -->
  <!-- values: null, active_directory, global_catalog -->
  <resolve_ldap_type>global_catalog</resolve_ldap_type>
  <!-- values: LDAP URLs or with AD url to resolve LDAP URL -->
  <urls>
    <url>example.com</url>
  </urls>
  <referral>ignore</referral>
  <ignore_partial_result_exception>false</ignore_partial_result_exception>
  <!-- only for AD. necessary for login with sAMAccountName -->
  <domain>example.com</domain>
  <manager_user>...</manager_user>
  <manager_password>...</manager_password>
  <user_search_filter>(&amp;(objectclass=user)(memberOf=CN=development,OU=development,OU=example_company,DC=example,DC=com))</user_search_filter>
  <!-- default: false - values: true/false -->
  <search_subtree>true</search_subtree>
  <group_search_filter>(&amp;(objectclass=group)(member={0}))</group_search_filter>
  <group_search_result>dn</group_search_result>
  <!-- URL to external single sign-on service -->
  <single_sign_on_url>https://sso.example.com/example-sso</single_sign_on_url>
  <single_sign_on_visible>false</single_sign_on_visible>
  <single_sign_on_order>20</single_sign_on_order>
</authentication_provider>
