Digital Rights and Traffic Lights

With digital rights, you can control the download of each file in the DAM, e.g. depending on its right's status. No file can be quick-downloaded, added to the shopping cart or shared without an automatic action happening. Digital rights also prevent editing of locked files, e.g. image or video editing would not be possible.

With an active digital rights configuration, a pop-up window appears as soon as a user wants to download or edit a file. This pop-up can have different layouts and functions, e.g.:

• a simple information pop-up for a free to use file
• a pop-up to accept the terms of usage before downloading for a restricted file
• or a pop-up starting an approval workflow for a restricted file

Pop-up to accept the terms of usage for a restricted file

The component digital rights is chargeable.

How Do Digital Rights Work?

Digital rights work with conditions that check a file's rights status and/or take the requesting user's role into account. The corresponding field and value options must already exist in your system.
Conditions are configured using one of the system's six possible permission types.

Each permission type results in a corresponding pop-up window with differing information and options and requires a separate configuration. The following permissions are possible:

• Allow
• No usage rights
• Confirm usage rights
• Usage statement
• Locked (Approval)
• Locked

SQL conditions

Please note: You can work with SQL conditions. They will work now, but will not be supported in future upgrades. We suggest working with SQL free conditions.

Possible Scenarios

Here are some possible scenarios for the usage of digital rights:

Role	Description	Usage rights	Permission Type
Administrators	No restrictions for this role	role has all rights	allow
Marketing	Users have to accept special usage rights	Download restricted	accept
Web design	Users have to comment a statement for usage	Download restricted	usage_statement
Sales	Users have to request files using the approval workflow	Download restricted	approval
Service	No download allowed for users of this role	Download locked	deny

Digital Rights? Traffic Lights? What is the Difference?

Digital rights are independent of the "traffic lights". Traffic lights are a visual information for the user, showing the rights' status of an asset, e.g.:

Traffic lights are configured as a CEVarchar field with value options, e.g. "Approved", "With Restrictions" and "Locked".
The digital rights' configuration may use the value options from this (or any other) field to prevent a download.

Learn how to configure traffic lights here.

How to Configure Digital Rights

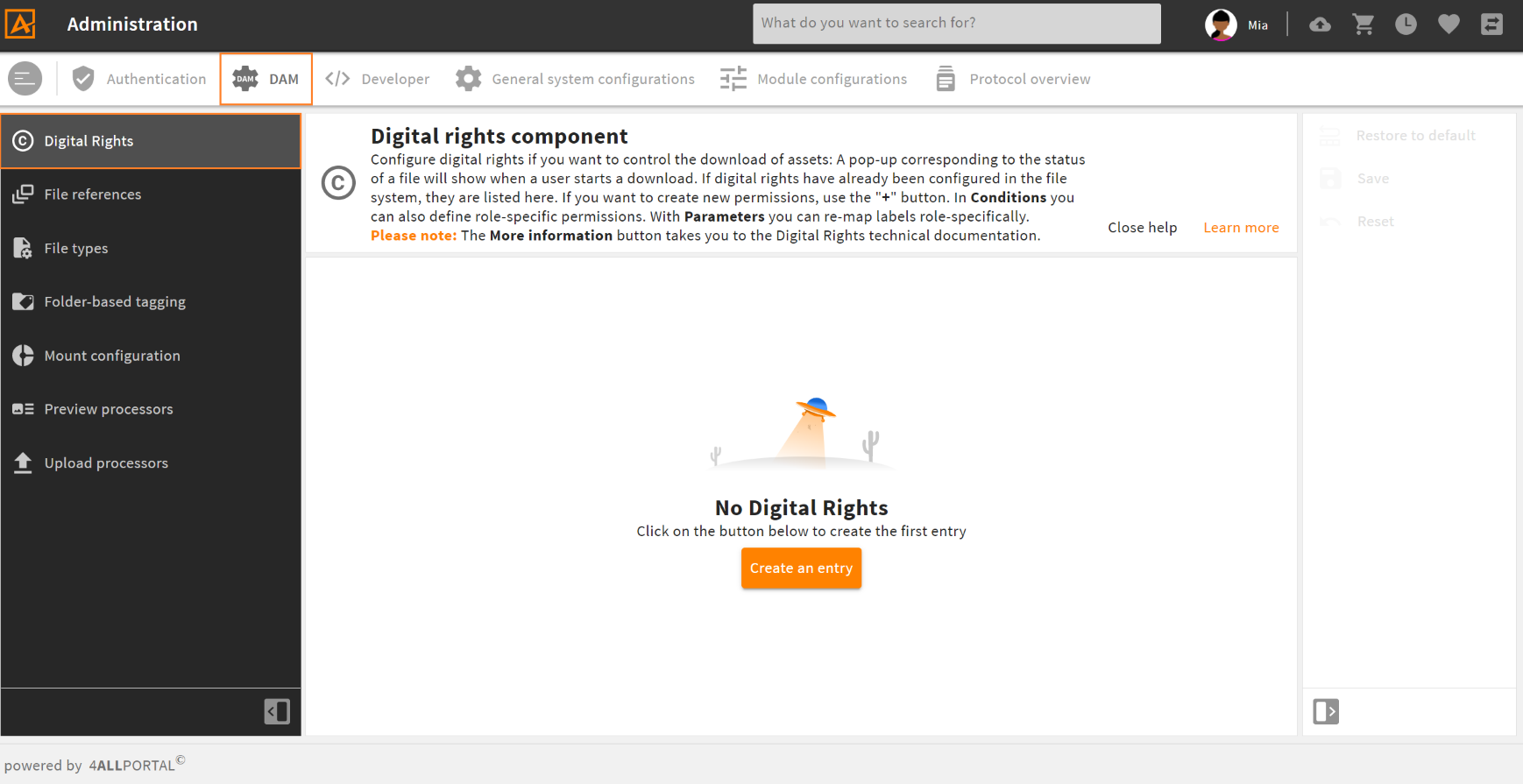

To configure digital rights, go to snap-in DAM/Digital Rights in the administration area.
All settings you make in this snap-in will be stored in file digital_rights.xml, in folder custom/modules/file in your filesystem.

Please note: You can make all digital rights configurations in this snap-in. Only custom pop-up renderers or approval workflows require an extra configuration.

If you have not yet configured digital rights here or in an XML file

Configure a Permission

To configure a permission, click Create an entry. You now need to choose one of the six available permission types and enter the conditions you require for that type.
Each permission type results in a different action/pop-up (permission type details). Each use case you want to create requires a separate permission.

Make your settings in the following fields:

Name	XML Field Name	Description
Permission type	name	Choose the type you want to define a condition for (permission type details).
Conditions	conditions	Enter a condition here to determine when this permission should apply. You can refer to any value option or field or user role (example conditions).
Additional Parameter		Enter a parameter name and a parameter value here (can be either a label key, a renderer name, or an action name). Parameters are required to customize the pop-ups or to add an action, e.g. for an approval workflow.

Conditions Based on Roles

If you link a condition to one or more roles, you must ensure that you always add new roles, if desired.
For example, if you are working with an "allow" condition like this: release_status = 'with_restrictions' AND {$currentUser.role.roleName}' = 'Admin', you will need to add new roles here if you want to allow their users to download restricted files.

Permission Types

Conditions for downloading or editing files can be defined using one of six possible permission types. Each of these types results in a different pop-up shown to the user.
Please note their differing XML type names (used e.g. for the renderer):

Name	XML Value
Allow	allow
No usage rights	confirm
Confirm usage rights	accept
Usage statement	usage_statement
Locked (Approval)	approve
Locked	deny

Allow

If you choose "allow", no pop-up appears. The file is free to use. The download starts directly.

No Usage Rights

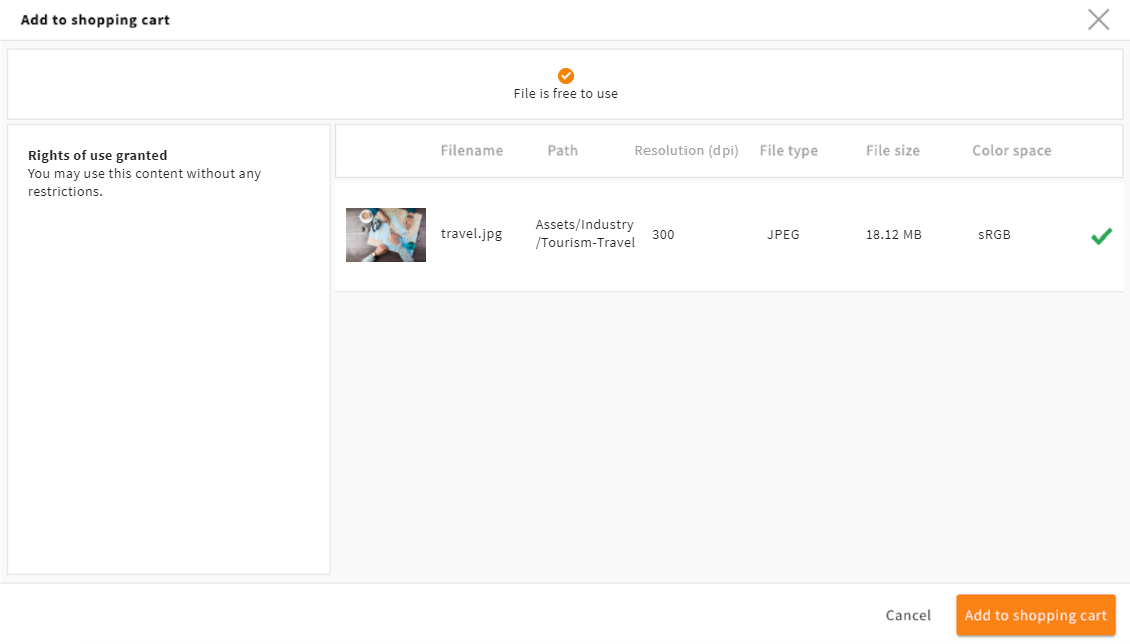

If you choose "No usage rights", an information pop-up appears. The file is free to use. The user can download the file without usage restrictions.

Confirm Usage Rights

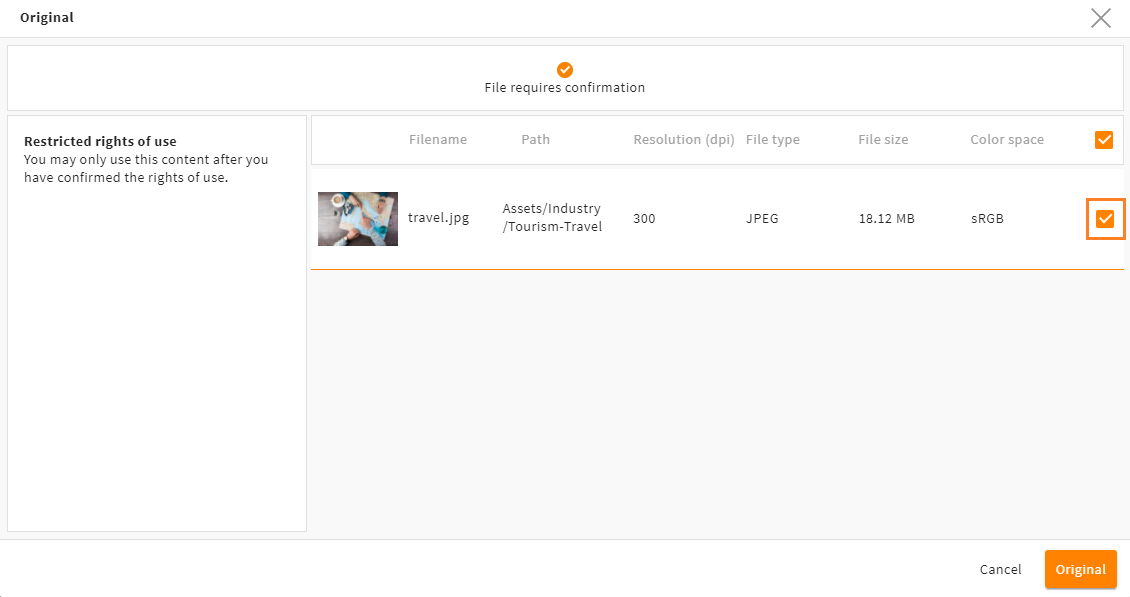

If you choose "Confirm usage rights", a pop-up appears. The file has usage restrictions. The user must accept the terms of use by ticking the checkbox. After that, the user can download the file.

Usage Statement

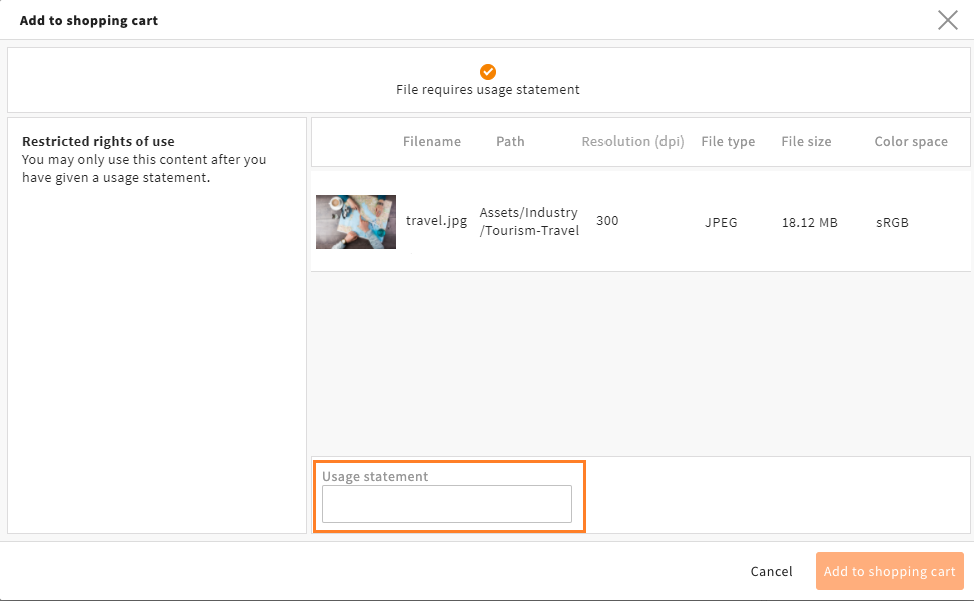

If you choose "Usage statement", a pop-up appears. The file has restrictions. The user must define the usage purpose in a statement field. After that, the user can download the file.

Locked (Approval)

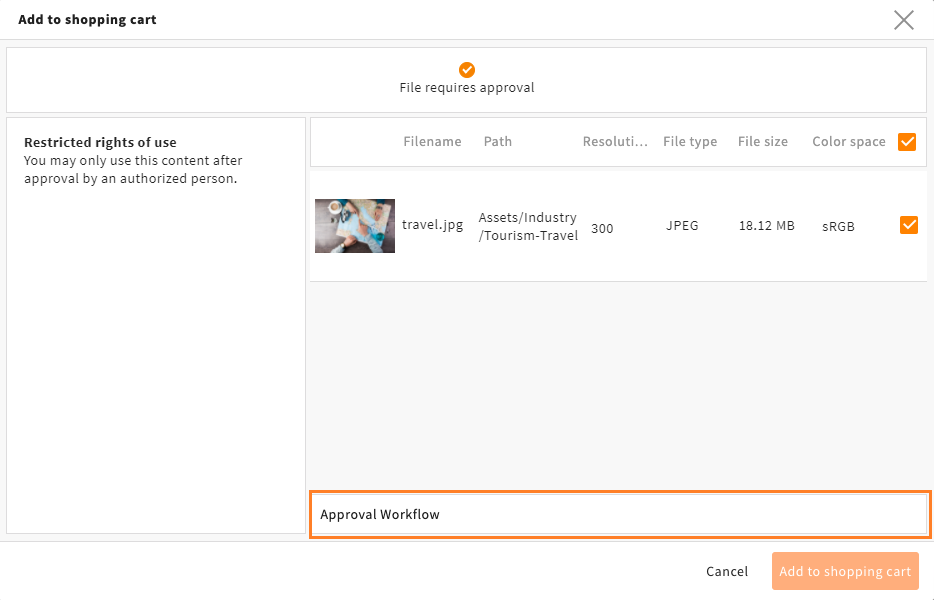

If you choose "Locked (Approval)", a pop-up appears. The file is locked and the user cannot download the file. The user gets the possibility to start an approval workflow for the required file(s). The user responsible for file approval receives a file approval task and an email notification. They can approve the request and confirm the usage, also depending on a special download profile.

Learn how to configure an approval workflow here.

Locked

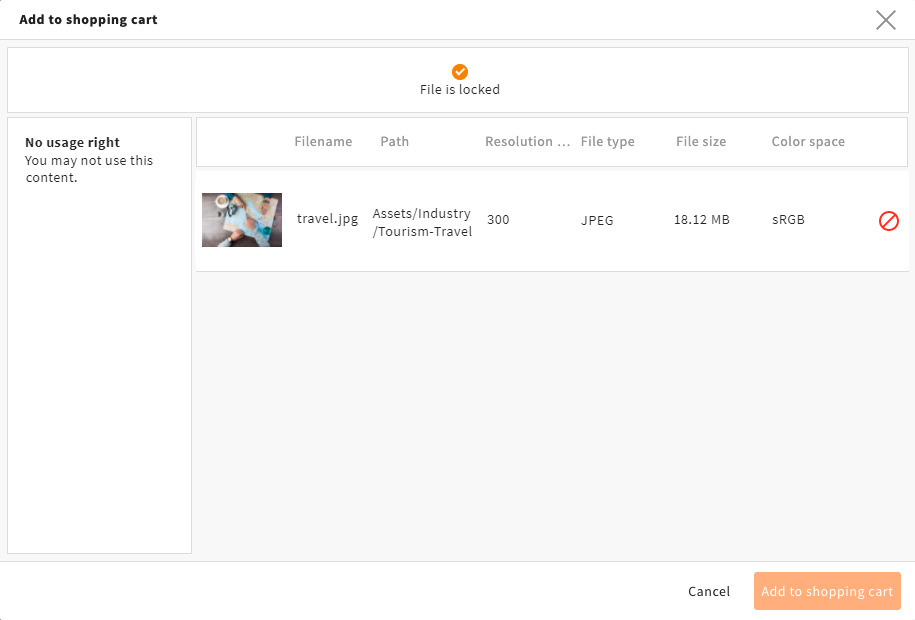

If you choose "Locked", an information pop-up appears. The file is locked. The user cannot download the file.

Fallback: If none of the set conditions apply for a file, the fallback is "deny".

Permission Order

The order of permissions in your snap-in resembles the order in the XML file.

You need to configure your permissions in descending order: First define the type with the most rights, e.g. "Allow", and at last type "Locked".
The system follows this order when checking for digital rights. As soon as the conditions of the first block match, its settings apply. You can move your blocks using the drag button on their left:

Permission Examples with and without SQL

A block from your snap-in could look like this in the digital_rights.xml:

1. Without SQL

<type>
   <name>{typename}</name>
   <conditions>
    <condition>
        <value1 type="field">
          <value>status</value>
        </value1>
        <operator>=</operator>
        <value2>
          <value>allowed</value>
        </value2>
    </condition>
   </conditions>
   <action_name>action_name</action_name> <!-- only for type approve -->
   <renderer_name>digital_rights/{typename}</renderer_name>
   <parameter/>
</type>

2. With SQL

<type>
   <name>{typename}</name>
   <conditions>
      <condition operator="and">
         <group>default</group>
         <operator>=</operator>
         <sql>release_status='with_restrictions'
            AND
            '{$currentUser.role.roleName}'='User'
         </sql>
      </condition>
   </conditions>
   <renderer_name>digital_rights/{typename}</renderer_name>
</type>

Customizing Permission Type Pop-ups

The texts and the renderer for the displayed assets in the five possible pop-ups like shown above is the system default. The default can be changed, e.g. to display role-specific texts, or display more or less metadata. This can be done using field "Additional Parameter".

Please note: Via a parameter, you can as well add an action to start an approval workflow.

Custom Texts

The system default pop-up texts are stored in file trafficlights.properties in folder 4allportal-dam/modules/filetransfer/locale/en_US.

If you want to change the default, e.g. to enter a specific headline for a specific role, you need to configure new parameters. You need to configure one permission for each required pop-up version.

1. Click the + button below "Parameter name" to open two new fields:


2. Enter the name of the text element you want to customize in field "Parameter name". Customizable text elements:

   • stepName (top headline)
   • summaryTitle (headline on the left)
   • summaryDescription (description on the left)

3. Enter the label key of the text element you want to customize in field "Parameter value". Make sure to replace {*type*} with the technical type name of the current permission in uppercase letters, e.g. DENY.

   • key for stepName: L-FILETRANSFER-DIGITAL_RIGHTS-{type}
   • key for summaryTitle: L-FILETRANSFER-DIGITAL_RIGHTS-{type}-TITLE
   • key for summaryDescription: L-FILETRANSFER-DIGITAL_RIGHTS-{type}-DESCRIPTION

4. Go to your custom folder and translate your label key(s) in a new .properties file, e.g. custom-digital-rights-pop-up-texts.properties. Make sure the file name is unique.

Please note: You can as well create new, unique label keys (e.g. for role-specific translations)

Further Documentation

For more details on labels and their translation, take a look here.

Custom List View

If you want to change the simple renderer that defines the pop-up's list view of the asset(s), e.g. to show more or less metadata, you need to define it via a new parameter in that permission.

1. Click the + button below "Parameter name" to open two new fields:

2. Enter rendererName in field "Parameter name"
3. Enter the path/name of your custom renderer in field "Parameter value". For custom renderers, use folder scheme digital_rights/{permission_type}, e.g. digital_rights/usage_statement.
   Please note: The folder path file/object_renderer/simple does not need be entered.

Approval Workflow for Digital Rights

If permission type "Locked (Approval)" applies, and an approval workflow is configured, users will see an approval pop-up after they confirmed the regular digital-rights pop-up. It requires a purpose of use as well as the requested download profiles.
Multiple files can be processed together (via SHIFT or STRG/CTRL + A).

When the user starts the workflow, the 4ALLPORTAL automatically creates a task for the inquirer as well as the approver, and an e-mail is sent to both of them.
All files with the same purpose of use within one request are combined into a separate task. The approver can now approve the request(s) in their Tasks module. Here, they can also deselect requested download profiles, if necessary.

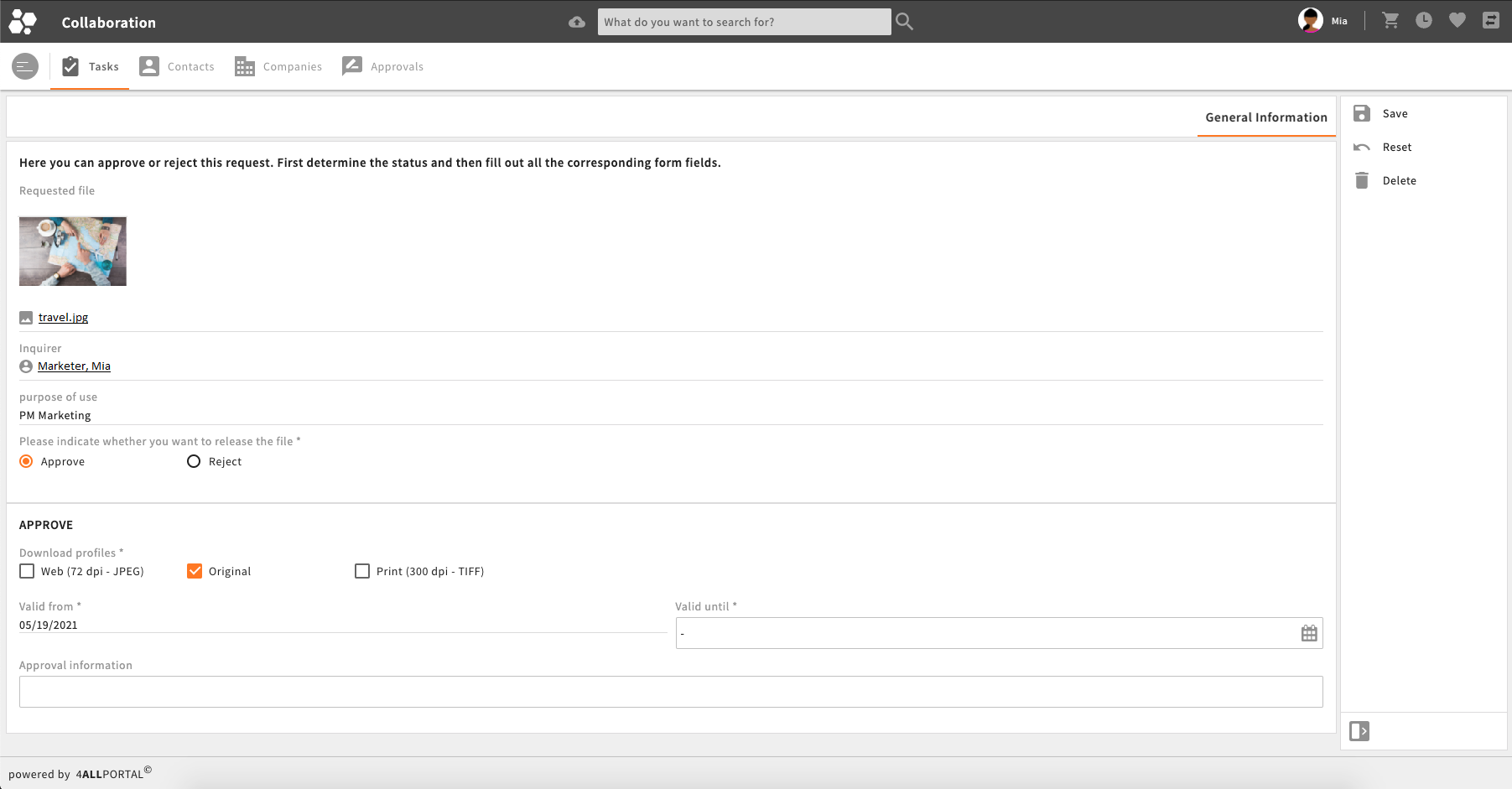

After the approver has approved the request, the inquirer receives a second e-mail with all information about the approval, e.g. an approval information.
They can now download the approved file(s) either via a download link in the e-mail or within the corresponding approval task.

Configure an Approval Workflow

If you want to make the download of files dependent on an approval workflow, the installation and configuration of 4App File Approval Workflow (4allportal-file-approval-workflow) is required.

After that, you need to follow these steps:

1. In admin snap-in DAM/Digital Rights, click "Create new entry" and select type "Locked (Approval)".
2. Enter the required conditions.
3. Click the + button below "Parameter name" to open two new fields:

4. Enter actionName in field "Parameter name"
5. Enter action name start_approval_workflow in field "Parameter value".

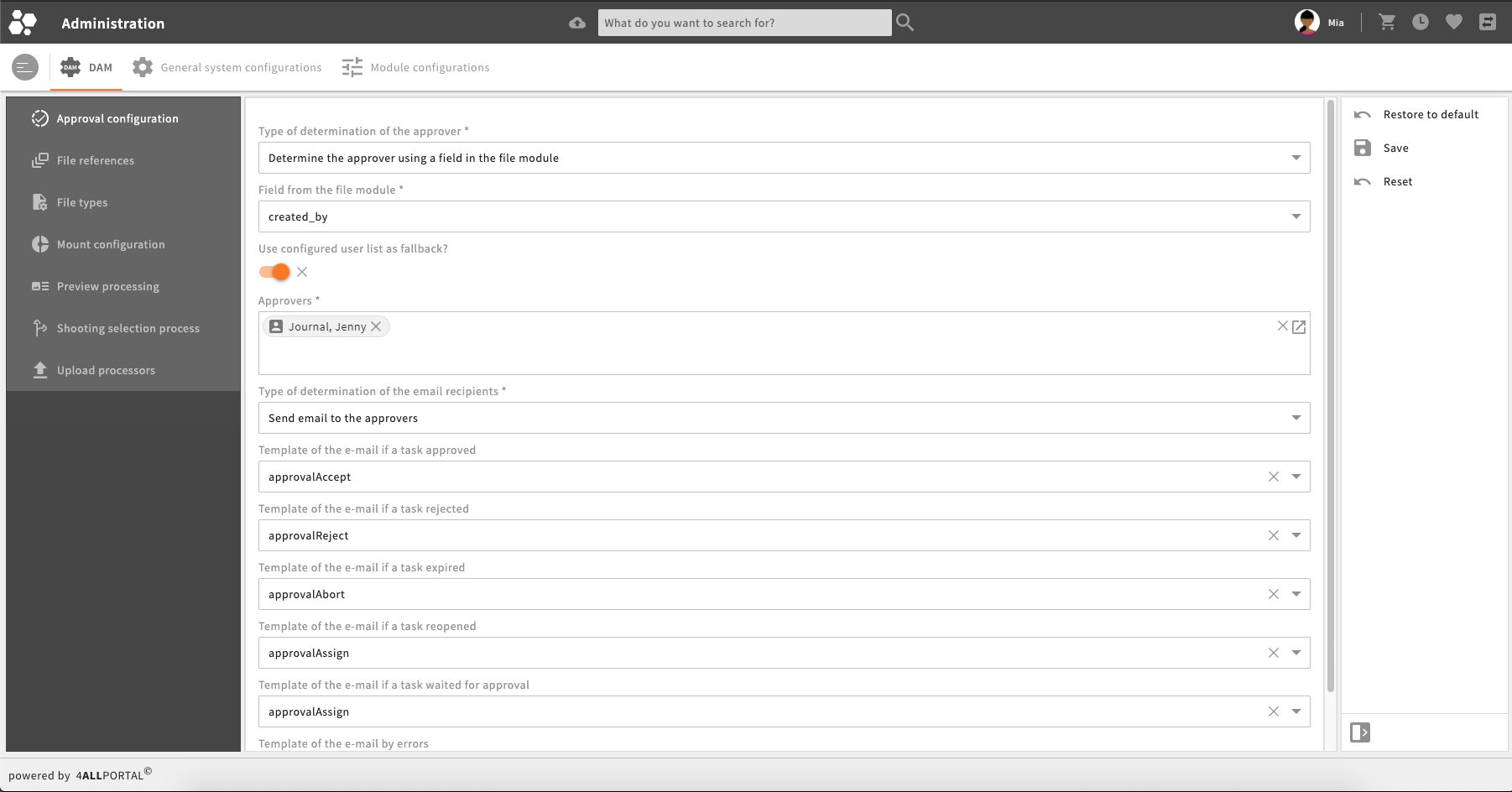

The configuration of the approval workflow is done in admin snap-in DAM/Approval configuration:

Users with the permission to approve can be set either in a predefined list or a specific CEId(List) field within the approved file. A complete role can be selected as approvers, too.

How to Configure Traffic Lights

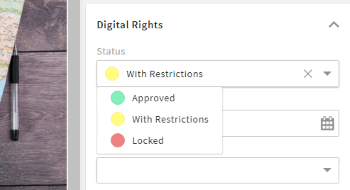

Traffic lights set and visualize the rights status of a file. The values from this field can then be used in a digital rights condition.
We usually configure a regular CEVarchar field with value options for the visualization of the traffic lights, e.g.:

To implement traffic lights like seen above to your system, follow these four steps:

1. Create a new field, e.g. release_status

<field>
 <is_native>true</is_native>
 <type>CEVarchar</type>
 <length>255</length>
 <audit>true</audit>
</field>

2. Create a value option, e.g. release_status_values

<keys>
  <key>approved</key>
  <key>with_restrictions</key>
  <key>locked</key>
</keys>

3. Create an object renderer to implement both

<field_renderer>
    <type>Selection</type>
    <value_option_key>release_status_values</value_option_key>
   <field_renderer_attributes>
      <entry class="string" key="visual_type">dropdown</entry>
      <entry class="boolean" key="show_icon">true</entry>
   </field_renderer_attributes>
   <field>
      <name>release_status</name>
   </field>
</field_renderer>

4. Define icons

V-RELEASE_STATUS_VALUES-APPROVED.4apicon
V-RELEASE_STATUS_VALUES-WITH_RESTRICTIONS.4apicon
V-RELEASE_STATUS_VALUES-LOCKED.4apicon

Please note: Icons must be .svg or .png files.

Traffic Lights on the Tile View

Optional, you can display traffic lights on the tile view in the file module:

To implement traffic lights to your tile view, use your existing digital rights field and value option configuration. Follow these four steps:

Step 1

Check your existing digital rights field and value option configuration.
You need to know the name of the metadata field for the digital rights status (e.g., release_status) as well as its assigned value option name.

Step 2

Modify the object renderer for the tile view in the file module.
Add a new field renderer to the object renderer configuration of the tile view. You can copy this template to your custom configuration in custom/modules/file/object_renderer/simple:

     <field_renderer>
         <type>Selection</type>
         <value_option_key>release_status_values</value_option_key>
       <field_renderer_attributes>
           <entry key="show_icon" class="boolean">true</entry>
           <entry key="show_label" class="boolean">false</entry>
       </field_renderer_attributes>
       <field>
         <name>release_status</name>
       </field>
     </field_renderer>

Metadata Icon List

If you have customized your tile view with multiple status icons, you can also add the traffic lights to your already customized metadata-icon-list component.

Step 3

Define or modify icons.
If required, you can create your own SVG image per permission in your filesystem's style folder /custom/modules/file/styles/default. We suggest creating small SVGs within 180 px height/width. Name the icons after the defined value options. The SVG file suffix should be renamed to ".4apicon":

V-{VALUE-OPTION-FILE_NAME}-{RIGHTS-VALUE}.4apicon

Example XML File

In the following example we attached the condition to a traffic lights field ("release_status") and the currentUser.role.roleName for every type.

<digital_rights>
   <type>
      <name>allow</name>
      <conditions>
         <condition>
            <sql>release_status = 'approved'</sql>
         </condition>
   </conditions>
   <renderer_name>digital_rights/allow</renderer_name>
  </type>
  <type>
      <name>confirm</name>
      <conditions>
        <condition>
           <sql>release_status = 'with_restrictions'
                AND
                {$currentUser.role.roleName}' = 'Admin'</sql>
        </condition>
      </conditions>
   <renderer_name>digital_rights/confirm</renderer_name>
  </type>
  <type>
      <name>accept</name>
      <conditions>
        <condition>
          <sql>release_status = 'with_restrictions'
               AND
               '{$currentUser.role.roleName}' = 'Power User'</sql>
        </condition>
      </conditions>
   <renderer_name>digital_rights/accept</renderer_name>
  </type>
  <type>
      <name>usage_statement</name>
      <conditions>
        <condition>
          <sql>release_status = 'with_restrictions'
               AND
               '{$currentUser.role.roleName}' = 'Marketing'</sql>
        </condition>
      </conditions>
   <renderer_name>digital_rights/usage_statement</renderer_name>
  </type>
  <type>
      <name>approve</name>
      <conditions>
        <condition>
          <sql>release_status = 'with_restrictions'</sql>
        </condition>
      </conditions>
   <action_name>start_approval_workflow</action_name>
   <renderer_name>digital_rights/approve</renderer_name>
  </type>
  <type>
      <name>deny</name>
      <conditions>
        <condition>
          <sql>release_status = 'locked'</sql>
        </condition>
      </conditions>
   <renderer_name>digital_rights/deny</renderer_name>
   </type>
</digital_rights>
