# Role Configuration

The Core Engine uses a role management that allows configuring native permissions, feature permissions, and presets role-specific for each module and its records. This includes the visibility of a module as well as permissions to create, view, edit, assign, and delete its records (files or objects). These permissions are called native permissions.

For feature permissions and presets, please refer to our Permissions and presets documentation.

To configure a role's native permissions, go to admin snap-in General system configurations/User settings/Role configuration, tab Role-based module settings:

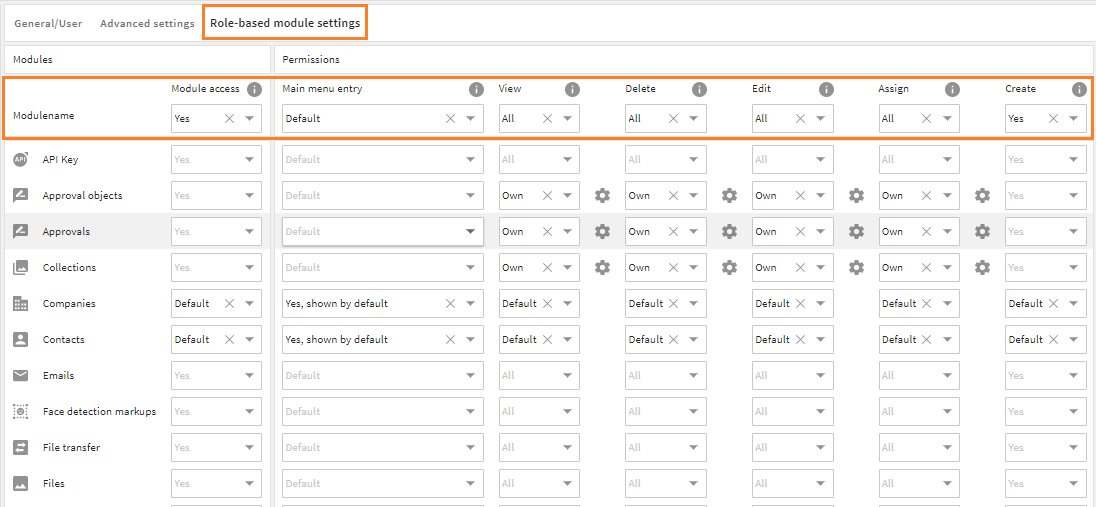

table with role permissions, highlighted: global permissions

Attention!

The role-based module-settings make no difference between user modules and technical (background) modules required for a working system. When changing default permissions, please consider the consequences when taking or assigning rights.
For example, setting the Contact's module access to "no" or "only friendlyname" will prevent this role's users from adding a receiver to an eTicket or download package.

Please note: Some technical modules are hidden in the role configurations, so their permission values cannot be customized via the frontend (list of modules).

# Hierarchy Model

The role management works hierarchically. It distinguishes global permissions that hand down their values down to all modules in the table like a cascade (first table row - highlighted above), and module-specific permissions that overwrite the global permissions for a module if set (all table rows below).

# Order of Permissions

Native permissions apply in a defined and descending order, where the system starts to check for custom, module-specific permission values:

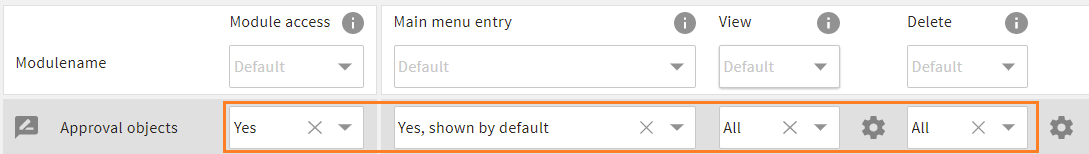

If a specific module's native permission has a custom value, the values from table ce_role_accs in the database apply (show_in_role_config must be "true" or not set).

If not manually set, or set to "default", the system checks the following:

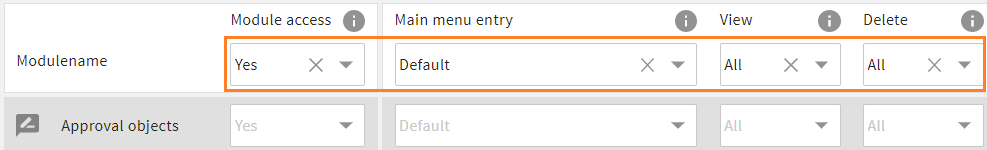

If the global module permission has a custom value, the values from table ce_role in the database apply (show_in_role_config must be "true" or not set).

If not manually set, or set to "default", the system does the following:
The module-specific native permissions from file modules/MODULE/setup.xml in the filesystem apply (How to change the module's default).

If set to "default", the system does the following:
The global native permission values from file global/defaults/native_permissions.xml in the filesystem apply.

Please note: If show_in_role_config is set to "false", both ce_role_accs and ce_role will not apply. With no values from the database, the XML values will apply.

If a permission value is shown black, a value was entered manually. This custom value applies (if set to "default": see order above).

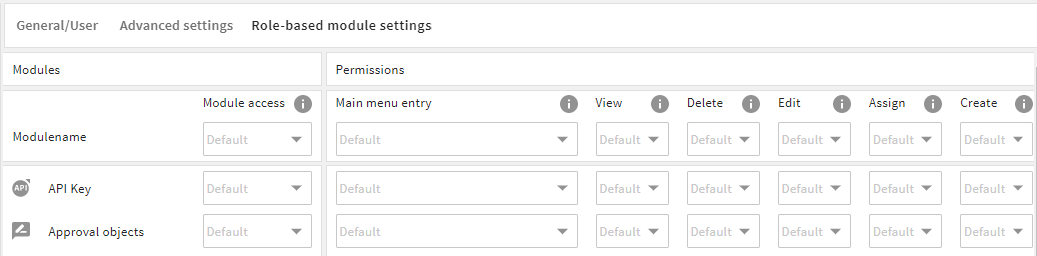

If a permission value is shown greyed out, a predefined value applies (e.g. the global permission's or the product standard "Default").

# Permission Fallbacks

If even the global native permissions are set to "default", a system fallback applies. Its values are set to "no rights".
If for some reason a module's XML file cannot be read, the global permission's value apply.

# Example

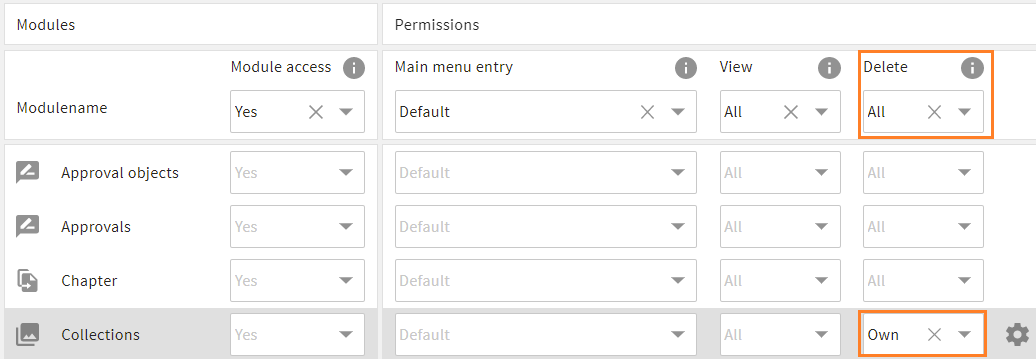

In the following example, the global permission for deleting records was manually set to "All". This value is handed down to all other modules. Users of this role can delete any records of all modules to which the global permission applies.
The module-specific value for "Collections" was manually set to "Own". The global permission is overwritten by "Own" and users of this role can only delete collection they have created themselves.

# What is the Default?

Our two standard roles "Administrator" and "User" come with predefined values. Some of them are set to "default". Also, when you create a completely new role, all global and module-specific native permissions are set to "default":

The "default" can be seen as the product standard or delivery status of a permission. Its values are stored in the system's XML files. This default always applies if a value is not changed manually to another value.

The actual XML values behind "default" are as follows:

# Global Permissions

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
all modules	yes	yes	public	public	public	public	yes

Compare the XML values with the snap-in value names here.

# Core Engine Modules

Please note: If any other value than "default" is set for a permission, that other value applies.

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
API Key * api_key	superadmin: yes, else: no	no	public	public	public	public	yes
CE module permissions * ce_role_accs	superadmin: yes, else: no	no	public	public	public	public	yes
Emails mail	no	no	none	none	none	none	no
History recent_obj	yes	no	own	own	none	none	yes
Log events logevents	superadmin: yes, else: no	no	public	public	default (global fallback = public)	default (global fallback = public)	no
Login attempts * login_attempt	superadmin: yes, else: no	no	public	public	none	none	no
Request management request_mngt	yes	no	public	own	own	own	yes
Roles ce_role	yes	no	public	superadmin: public else: none	superadmin: public, else: none	superadmin: public, else: none	superadmin: yes, else: no
Saved filters * saved_search	yes	no	own	own	own	own	yes
Sessions * session	superadmin: yes, else: no	no	public	public	none	none	no
Update management * update_mngt	superadmin: yes, else: no	no	public	public	public	public	yes
User user (details see below)	yes	yes (shown)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	yes
Versioning * version	yes	no	public	public	public	none	yes
Webhooks * webhook	superadmin: yes, else: no	no	public	public	public	public	yes
Webhook events * webhook_event	superadmin: yes, else: no	no	public	public	public	public	yes
Webhooks logevents * webhook_logevent	superadmin: yes, else: no	no	public	public	public	public	yes

* module does not show in role configuration

Please note: The minimum requirement for User module is to set "Module access" to "Yes". This gives access to the module's records including the user's profile and object image, or the possibility to assign users to records (Reference Find), e.g. to invite them to a collection.

Yes: access to this module's records, access to "user profile" menu, Reference Find, users' object images
No: no access to this module's records, no access to "user profile" menu, no Reference Find, no users' object image
Only friendlyname: only own username in header, access only to "friendly name" records, no Reference Find, no users' object image

# DAM Modules

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
Approval objects review_item	yes	no	own	own	own	own	yes
Approvals review	yes	yes (shown)	own	own	own	own	yes
Collections f_collection	yes	yes (shown)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	yes
eTickets et	yes	no	own	own	own	none	yes
eTicket assets * et_asst	yes	no	public	public	public	public	yes
eTicket asset derivative * et_asst_derv	yes	no	public	public	public	public	yes
File access * fileaccess	yes	no	public	public	public	public	yes
File access items * fileacc_item	yes	no	public	public	public	public	yes
File transfer objects * filetran_obj	yes	no	own	own	own	own	yes
File transfer process status * filetran_obj_proc_status	yes	no	own	own	own	own	yes
File transfer filetransfer	yes	no	own	own	own	own	yes
Files file	yes	yes (shown)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	yes
Folders folder	yes	no	public	none	none	none	no
Markup component (Text) * idnt_mkp_txt	yes	no	own	own	own	own	yes
Object recognition markup * *idnt_mkp_object	yes	no	public	none	none	none	no
Markup comments file_markup_comment	yes	no	public	own	own	own	yes
Markups file_markup (details see below)	yes	no	public	own	own	own	yes
Object markings file_markup_item	yes	no	public	own	own	own	yes
Usage history usa_his_ass	yes	yes (shown)	default (global fallback = public)	none	none	default (global fallback = public)	no

* module does not show in role configuration

Please note: The rights for module Markups (file_markup) also have an effect on the linked files subpanel for InDesign files. If a role's view rights are set to only "own", linked files will not be displayed. If required, make sure to keep the system's default "public".

# Essentials Modules

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
Companies account	yes	yes (shown)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	yes
Contacts contact	yes	yes (shown)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	yes
Favorites * favorite_obj	yes	no	own	own	own	own	yes
Shares share	yes	no	own	own	own	none	yes
Tasks task	yes	yes (shown)	own	own	own	own	yes

* module does not show in role configuration

# AI Tagging Modules

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
Face detection markups idt_mkp_face	yes	no	public	none	none	none	no
Objects (AI) ai_object	yes	yes (shown)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	default (global fallback = public)	yes

# PIM Modules

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
Product categories product_cat	no	no	none	none	none	none	no
Product technologies product_tech	yes	no	none	none	none	none	no
Product variants product_var	no	no	none	none	none	none	no
Products product	no	yes (shown)	none	none	none	none	no

# User Registration Module

"Default" =

Module name	Module access	Main menu entry	View	Delete	Edit	Assign	Create
User registration user_registr	no	no	none	none	none	none	no

# Permission Values

Please refer here for information about the storage of native and custom permissions in your filesystem/database.

# Explanation of Permission Values

This table explains all possible permissions that can be granted to users of the chosen role and module:

Permission (XML Value)	Snap-in Value (XML Value)	Description
Module access mod_access	Default (default)	permission according to default permissions
	Yes (yes)	Users get access to this module.
	Only friendlyname (friendlyname)	Users can only read this module's friendlyname, but has no further properties of this module, e.g. read, write ... permissions. (Make friendlyname settings in the Module Definition.)
	No (no)	Users get no access to this module.

Main menu entry menu_entry	Default (default)	permission according to default permissions
	Yes, shown (yes_default_shown)	Users can open this module via the mega menu because the module icon is displayed.
	Yes, hidden (yes_default_hidden)	Users can only open this module via URL parameter because the module icon is not displayed.
	No (no)	Users cannot open this module via the mega menu because the module icon is hidden.

View read	Default (default)	permission according to default permissions
	None (none)	Users cannot view this module's records.
	Own (own)	Users can view only the module's records they have created themselves.
	Role (role)	Users can view only the module's records they or another user of the same role have created.
	Role and down (role_down)	Users can view only the module's records they or another user of the same role or its child roles have created.
	All (public)	Users can view all records in this module unrestricted.

Delete delete	Default (default)	permission according to default permissions
	None (none)	Users cannot delete records in this module.
	Own (own)	Users can delete only the module's records they have created themselves.
	Role (role)	Users can delete only the module's records they or another user of the same role have created.
	Role and down (role_down)	Users can delete only the module's records they or another user of the same role or its child roles have created.
	All (public)	Users can delete all records in this module unrestricted.

Edit edit	Default (default)	permission according to default permissions
	None (none)	Users cannot edit this module's records.
	Own (own)	Users can edit only the module's records they have created themselves.
	Role (role)	Users can edit only the module's records they or another user of the same role have created.
	Role and down (role_down)	Users can edit only the module's records they or another user of the same role or its child roles have created.
	All (public)	Users can edit all records in this module unrestricted.

Assign assign	Default (default)	permission according to default permissions
	None (none)	Users cannot change field `owner_user` of this module's records.
	Own (own)	Users can change field `owner_user` of this module's records only if they have created them themselves.
	Role (role)	Users can change field `owner_user` of this module's records only if they or another user of the same role have created them themselves.
	Role and down (role_down)	Users can change field `owner_user` of this module's records only if they or another user of the same role or its child roles have created them themselves.
	All (public)	Users can change field `owner_user` of this module's records unrestricted.

Create create	Default (default)	permission according to default permissions
	Yes (yes)	Users can create records in this module.
	No (no)	Users cannot create records in this module.

# Role-specific Layouts

Next to role-specific permissions, you can also assign a role a specific layout, e.g. to remove a subpanel or add a button for certain roles. For this, you need to map a layout to a role in the Layouts section:

For all details on how to create role-specific layouts, refer our layouts documentation.

# Test Your Role Configurations

If you want to see the effect of your role configurations from a user of that role's point of view, you have the option to use feature Impersonation.
